[DX] 3D Model Render -1

💻 Model 클래스 작성

이전학습을 통해 3D Model의 정보들을 읽고, 저장할 수 있는 기능을 구현해보았다.

이번에는 이러한 Model 파일을 읽고 그대로 화면에 그려보았다.

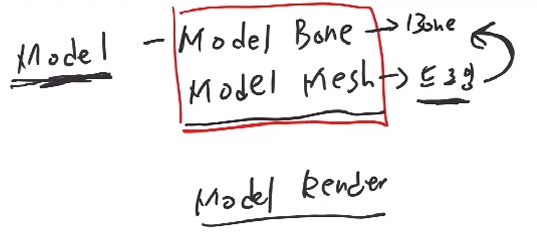

현재 3D 파일을 읽어와 Model 클래스를 만들어놨고, 이러한 Model의 정보인 Model Bone과 Model Mesh 클래스를 각각 제작할 것이다.

Model Mesh에는 정점같은 Drawing 정보를 가지고, Model Bone에는 말 그대로 Bone 정보를 가진다.

렌더링을 관리하기 위한 Model Render 클래스도 제작하여 Mesh의 Drawing 을 구현할 것이다.

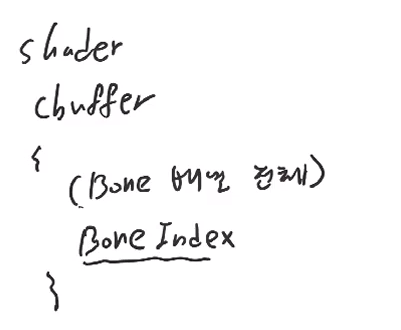

이때, 쉐이더에는 Bone 배열 전체가 들어가는 CBuffer를 하나 만들고, Mesh가 주체가 되므로, 해당 Mesh가 참조하고있는 Bone Index를 CBuffer로 함께 넘겨줄 것이다.

Bone Index를 확인하면서 몇번 Bone인지 그려질 Bone에 대한 World 좌표를 계산하여 그릴 것이다.

---



📄 Model.h

#pragma once
#define MAX_MODEL_TRANSFORMS 250

class ModelBone;
class ModelMesh;

class Model
{
public:
	typedef VertexTextureNormalTangentBlend ModelVertex;

public:
	Model();
	~Model();

	UINT BoneCount() { return bones.size(); }
	vector<ModelBone *>& Bones() { return bones; }
	ModelBone* BoneByIndex(UINT index) { return bones[index]; }
	ModelBone* BoneByName(wstring name);

	UINT MeshCount() { return meshes.size(); }
	vector<ModelMesh *>& Meshes() { return meshes; }
	ModelMesh* MeshByIndex(UINT index) { return meshes[index]; }
	ModelMesh* MeshByName(wstring name);

public:
	void ReadMesh(wstring file);

private:
	void BindBone();
	void BindMesh();

private:
	ModelBone* root;
	vector<ModelBone*> bones;
	vector<ModelMesh*> meshes;
};

📄 Model.cpp

#include "Framework.h"
#include "Model.h"
#include "Utilities/BinaryFile.h"

Model::Model()
{
}

Model::~Model()
{
	for (ModelBone* bone : bones)
		SafeDelete(bone);

	for (ModelMesh* mesh : meshes)
		SafeDelete(mesh);
}

ModelBone* Model::BoneByName(wstring name)
{
	for (ModelBone* bone : bones)
	{
		if (bone->Name() == name)
			return bone;
	}

	return NULL;
}

ModelMesh* Model::MeshByName(wstring name)
{
	for (ModelMesh* mesh : meshes)
	{
		if (mesh->Name() == name)
			return mesh;
	}

	return NULL;
}

void Model::ReadMesh(wstring file)
{
	file = L"../../_Models/" + file + L".mesh";

	BinaryReader* r = new BinaryReader();
	r->Open(file);

	UINT count = 0;
	count = r->UInt();
	for (UINT i = 0; i < count; i++)
	{
		ModelBone* bone = new ModelBone();
		bone->index = r->Int();
		bone->name = String::ToWString(r->String());
		bone->parentIndex = r->Int();
		bone->transform = r->Matrix();

		bones.push_back(bone);
	}

	count = r->UInt();
	for (UINT i = 0; i < count; i++)
	{
		ModelMesh* mesh = new ModelMesh();

		mesh->name = String::ToWString(r->String());
		mesh->boneIndex = r->Int();

		mesh->materialName = String::ToWString(r->String());

		//VertexData
		{
			UINT count = r->UInt();

			vector<Model::ModelVertex> vertices;
			vertices.assign(count, Model::ModelVertex());

			void* ptr = (void *)&(vertices[0]);
			r->Byte(&ptr, sizeof(Model::ModelVertex) * count);


			mesh->vertices = new Model::ModelVertex[count];
			mesh->vertexCount = count;
			copy
			(
				vertices.begin(), vertices.end(),
				stdext::checked_array_iterator<Model::ModelVertex *>(mesh->vertices, count)
			);
		}

		//IndexData
		{
			UINT count = r->UInt();

			vector<UINT> indices;
			indices.assign(count, UINT());

			void* ptr = (void *)&(indices[0]);
			r->Byte(&ptr, sizeof(UINT) * count);


			mesh->indices = new UINT[count];
			mesh->indexCount = count;
			copy
			(
				indices.begin(), indices.end(),
				stdext::checked_array_iterator<UINT *>(mesh->indices, count)
			);
		}

		meshes.push_back(mesh);
	}

	r->Close();
	SafeDelete(r);

	BindBone();
	BindMesh();
}

void Model::BindBone()
{
	root = bones[0];

	for(ModelBone* bone : bones)
	{
		if(bone->ParentIndex() > -1)
		{
			bone->parent = bones[bone->parentIndex];
			bone->parent->childs.push_back(bone);
		}
		else
		{
			bone->parent = NULL;
		}
	}
}

void Model::BindMesh()
{
	for (ModelMesh* mesh : meshes)
	{
		mesh->bone = bones[mesh->boneIndex];

		mesh->Binding(this);
	}
}

📄 ModelMesh.h

#pragma once

class ModelBone
{
public:
	friend class Model;

private:
	ModelBone();
	~ModelBone();

public:
	int Index() { return index; }

	int ParentIndex() { return parentIndex; }
	ModelBone* Parent() { return parent; }

	wstring Name() { return name; }

	Matrix& Transform() { return transform; }
	void Transform(Matrix& matrix) { transform = matrix; }

	vector<ModelBone *>& Childs() { return childs; }

private:
	int index;
	wstring name;

	int parentIndex;
	ModelBone* parent;

	Matrix transform;
	vector<ModelBone*> childs;
};

///////////////////////////////////////////////////////////////////////////////

class ModelMesh
{
public:
	friend class Model;

private:
	ModelMesh();
	~ModelMesh();

	void Binding(Model* model);

public:
	void Pass(UINT val) { pass = val; }
	void SetShader(Shader* shader);

	void Update();
	void Render();

	wstring Name() { return name; }

	int BoneIndex() { return boneIndex; }
	class ModelBone* Bone() { return bone; }

	void Transforms(Matrix* transforms); // BoneDesc의 Transforms에 접근하기 위한 함수
	void SetTransform(Transform* transform); // Model의 위치를 움직이기 위한 함수

private:
	struct BoneDesc
	{
		Matrix Transforms[MAX_MODEL_TRANSFORMS];

		UINT index;
		float Padding[3];
	} boneDesc;

private:
	wstring name;

	Shader* shader;
	UINT pass = 0;

	Transform* transform = NULL;
	PerFrame* perFrame = NULL;

	wstring materialName = L"";


	int boneIndex;
	class ModelBone* bone;

	VertexBuffer* vertexBuffer;
	UINT vertexCount;
	Model::ModelVertex* vertices;

	IndexBuffer* indexBuffer;
	UINT indexCount;
	UINT* indices;

	ConstantBuffer* boneBuffer;
	ID3DX11EffectConstantBuffer* sBoneBuffer;
};

📄 ModelMesh.cpp

#include "Framework.h"
#include "ModelMesh.h"

ModelBone::ModelBone()
{
}

ModelBone::~ModelBone()
{
}

///////////////////////////////////////////////////////////////////////////////

ModelMesh::ModelMesh()
{
	boneBuffer = new ConstantBuffer(&boneDesc, sizeof(BoneDesc));
}

ModelMesh::~ModelMesh()
{
	SafeDelete(transform);
	SafeDelete(perFrame);

	//SafeDelete(material);

	SafeDeleteArray(vertices);
	SafeDeleteArray(indices);

	SafeDelete(vertexBuffer);
	SafeDelete(indexBuffer);

	SafeDelete(boneBuffer);
}

void ModelMesh::Binding(Model* model)
{
	vertexBuffer = new VertexBuffer(vertices, vertexCount, sizeof(Model::ModelVertex));
	indexBuffer = new IndexBuffer(indices, indexCount);
}

void ModelMesh::SetShader(Shader* shader)
{
	this->shader = shader;

	SafeDelete(transform);
	transform = new Transform(shader);

	SafeDelete(perFrame);
	perFrame = new PerFrame(shader);

	sBoneBuffer = shader->AsConstantBuffer("CB_Bone");
}

void ModelMesh::Update()
{
	boneDesc.index = boneIndex;

	perFrame->Update();
	transform->Update();
}

void ModelMesh::Render()
{
	boneBuffer->Render();
	sBoneBuffer->SetConstantBuffer(boneBuffer->Buffer());

	perFrame->Render();
	transform->Render();
	//material->Render();

	vertexBuffer->Render();
	indexBuffer->Render();

	D3D::GetDC()->IASetPrimitiveTopology(D3D11_PRIMITIVE_TOPOLOGY_TRIANGLELIST);

	shader->DrawIndexed(0, pass, indexCount);
}

void ModelMesh::Transforms(Matrix* transforms)
{
	memcpy(boneDesc.Transforms, transforms, sizeof(Matrix) * MAX_MODEL_TRANSFORMS);
}

void ModelMesh::SetTransform(Transform* transform)
{
	this->transform->Set(transform);
}
